Please enter your contact below and click "PROMO QUOTES" to receive pricing on the Tektronix Free Bandwidth Upgrade Offer.

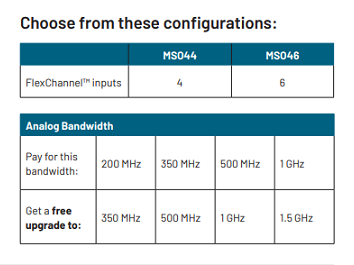

  6. Models:
    MSO44:
     4 Ch, 200 MHz
     4 Ch, 350 MHz
     4 Ch, 500 MHz

     4 Ch, 1 GHz

    MSO46:
     4 Ch, 200 MHz
     4 Ch, 350 MHz
     4 Ch, 500 MHz

     4 Ch, 1 GHz
  7. Notes:




With the largest display and highest available channel count in its class, the 4 Series MSO offers unprecedented insight in a bench-friendly package. And its made-for-touch user interface works exactly as you'd expect. Now, while supplies last, it's available with a FREE bandwidth upgrade.
Key Features of the first-generation 4 Series MSO:
  • Bandwidths of 200 MHz, 350 MHz, 500 MHz, 1 GHz, 1.5 GHz. During this promotion, pay for one bandwidth and get a free upgrade to the next highest bandwidth.
  • 4 or 6 FlexChannel™ inputs. Each FlexChannel can measure an analog signal as a waveform view, a spectrum view, or both simultaneously - or eight digital logic inputs with a TLP058 logic probe
  • Real-time sample rate: 6.25 GS/s
  • Vertical resolution 12-bit ADC; up to 16-bits in high-res mode
  • Record length: 31.25 Mpoints standard (62.5 Mpoints optional upgrade)
  • 13.3-inch high-definition touch display
  • Standard analysis including multi-channel synchronized spectrum analysis, cursor measurements, 36 automated time and amplitude measurements, FastFrame™ segmented memory, statistics, and plots.
  • Optional built-in arbitrary/function generator

    Add optional advanced features to suit your workload needs. The 4 Series MSO can be configured with:
    • Arbitrary/Function Generator
    • RF vs. Time traces, triggers, Spectrograms, and IQ capture
    • Mask/Limit Testing
    • Advanced Power Measurements and Analysis
    • Three-Phase Electrical Analysis (6 channel model only)
    • Protocol decoding for I2 C, SPI, eSPI, I3C, RS-232/422/485/UART, SPMI, SMBus, CAN, CAN FD, LIN,
    • FlexRay, SENT, PSI5, CXPI, USB 2.0, eUSB2, Ethernet, EtherCAT, Audio, MIL-STD-1553, ARINC 429, Spacewire, NRZ, Manchester, SVID, SDLC, 1-Wire, MDIO, and NFC


    See the 4 Series MSO datasheet for details on Advanced Analysis software and compatible probes.

    Promotion Conditions:
    • Offer valid while supplies last, or until September 27, 2024.
    • End customers are eligible to receive one (1) free bandwidth upgrade license for each (1) eligible scope purchased during the program.
    • The program does not apply to purchases made before February 12, 2024 or after program termination.
    • Tektronix reserves the right to change or cancel this program at any time.
